Radiator Bracket Kit – Ducati Panigale V4 2025

Dedicated Radiator Support for Track Fairings

The CBE Factory Radiator Bracket Kit for the Ducati Panigale V4 2025 is designed to provide secure, properly aligned support for the water and oil radiators when the original fairings are replaced with racing fairings.

In the OEM configuration, the original fairings contribute to supporting the radiator assembly. When converting the motorcycle to track fairings, these mounting points may no longer be available, making a dedicated support system essential.

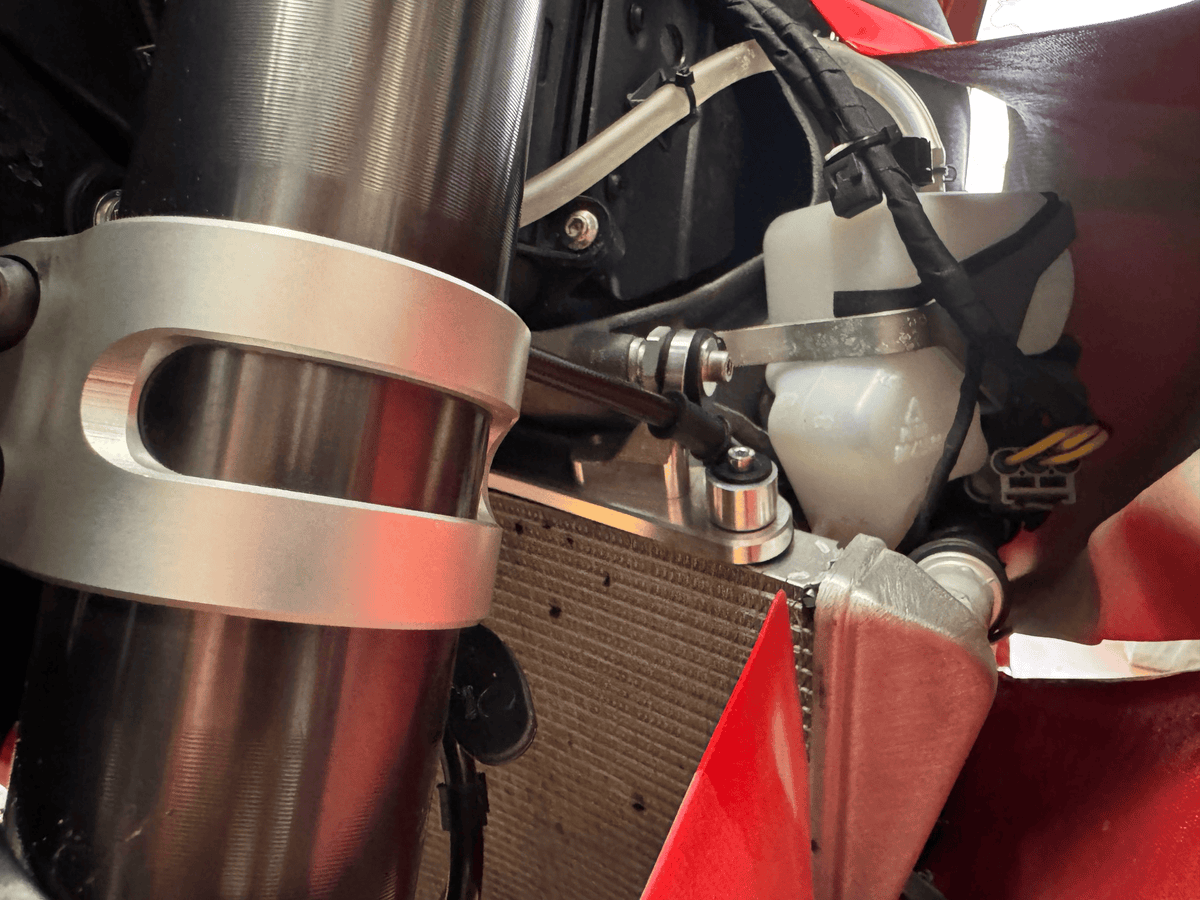

This kit provides a purpose-designed mounting solution that attaches the radiator assembly directly to the motorcycle's frame, helping maintain correct positioning, secure installation, and vibration management during track use.

Optimized Load Distribution

The upper radiator bracket is designed to follow the radiator's upper surface, distributing loads across a broader contact area rather than concentrating them at a few isolated mounting points.

This design helps reduce localized stress on the radiator. An integrated elastomer element between the bracket and radiator also helps absorb vibrations and small movements, providing an additional layer of protection during intensive track use.

Frame Mounting with Vibration Isolation

Two supports extend from the upper bracket to connect the radiator assembly to the motorcycle's frame through appropriately sized silent blocks.

This mounting arrangement combines secure positioning with vibration isolation, avoiding an unnecessarily rigid connection that could transfer additional vibration and stress to the radiator.

The result is a carefully engineered support system designed to balance structural stability with the flexibility needed for demanding circuit conditions.

Dedicated Oil Radiator Support

The kit also includes a lower bracket specifically designed to support the horizontal oil radiator.

Working together with the upper mounting system, this bracket helps maintain the correct position of the radiator assembly and provides a clean, integrated installation suited to track-prepared motorcycles.

Premium Materials and Construction

All brackets are precision CNC-machined from 6082 aluminium and finished with clear anodizing to provide corrosion resistance and a clean technical appearance.

Every component is designed around the requirements of the Ducati Panigale V4 2025, with an emphasis on low weight, reliable mounting, and functional integration.

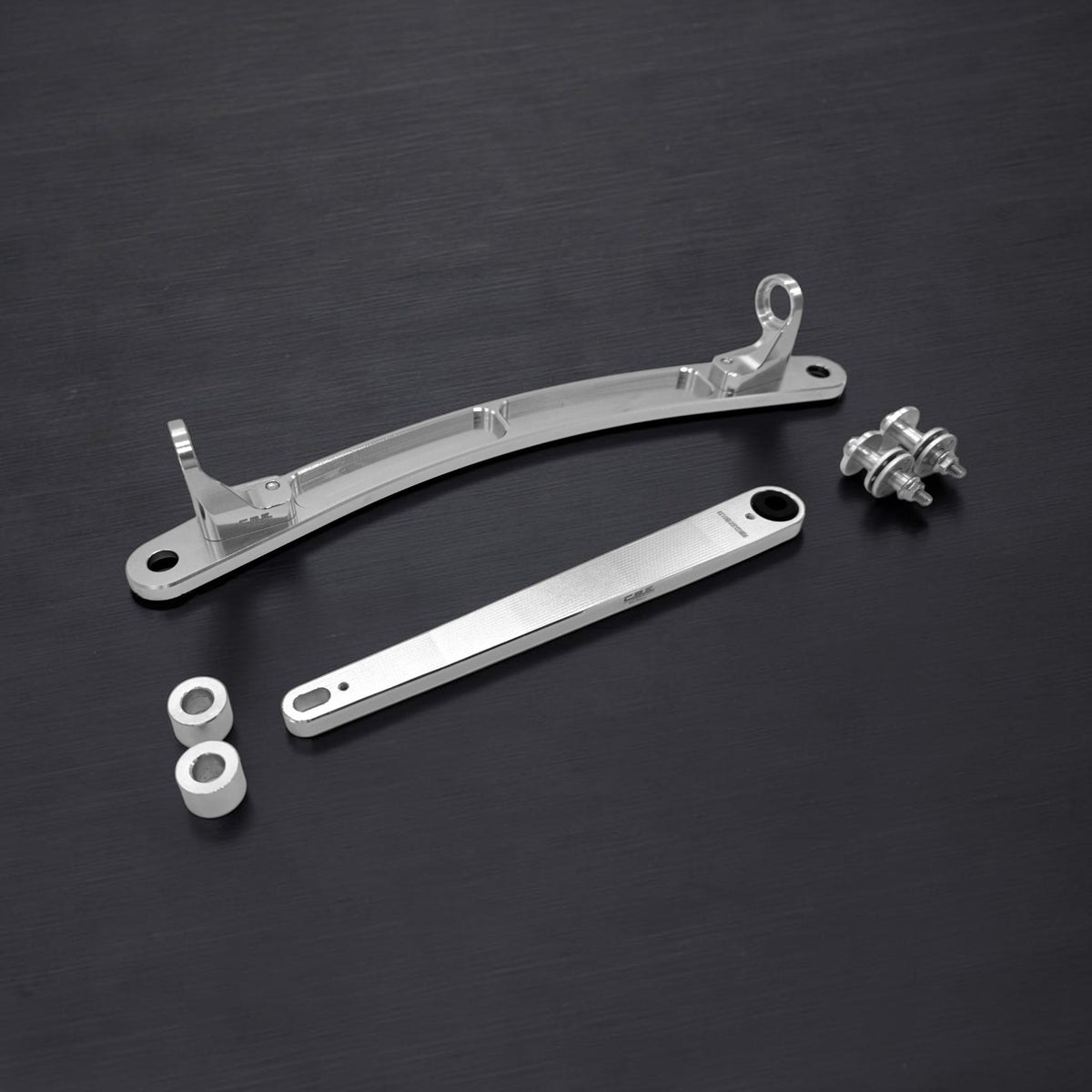

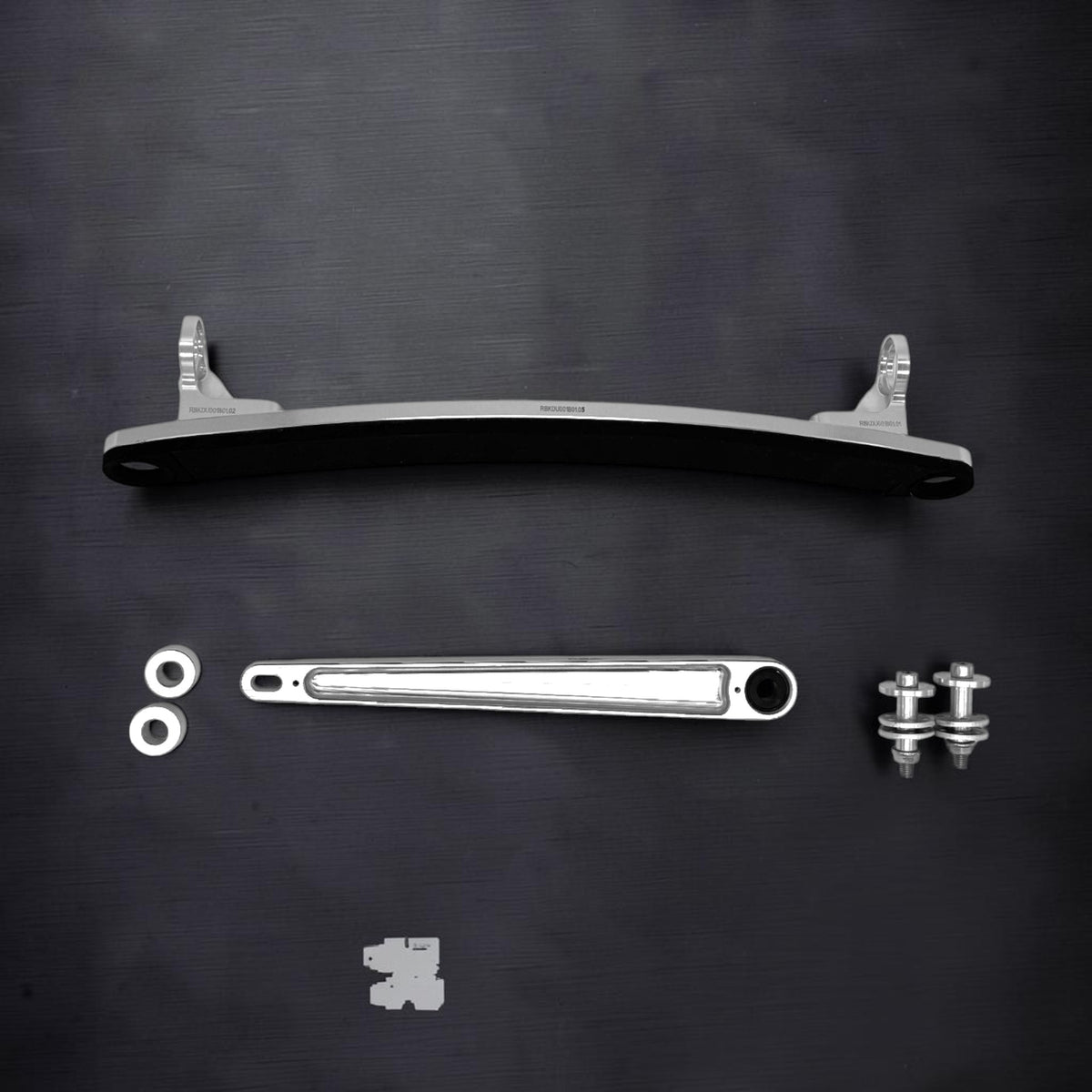

Kit Contents

• Upper radiator support bracket
• Two frame-mounting brackets
• Lower oil radiator support bracket
• Bushings
• Mounting hardware
• Anti-vibration elastomer element

Note: The silent blocks from the original Ducati fairing are reused during installation.

Why Choose the CBE Factory Radiator Bracket Kit?

Converting a motorcycle to racing fairings requires more than simply replacing the bodywork. Components previously supported by the OEM fairings need a dedicated mounting solution to maintain correct installation and positioning.

The CBE Factory Radiator Bracket Kit addresses this requirement with a frame-mounted design, distributed support, and vibration-absorbing elements. It provides a purpose-built solution for riders and teams preparing the Ducati Panigale V4 2025 for track use.

Designed and manufactured with CBE Factory's focus on technical functionality, lightweight construction, and precise integration, this kit helps create a clean and secure radiator installation for racing fairings.

Product Specifications

• Motorcycle: Ducati Panigale V4
• Model year: 2025
• Application: Radiator mounting with track fairings
• Material: CNC-machined 6082 aluminium
• Finish: Clear anodized
• Mounting: Direct frame support
• Vibration management: Elastomer element and silent-block mounting
• Included: Upper radiator bracket, frame supports, lower oil radiator bracket, bushings, mounting hardware, and elastomer element
• Original components reused: OEM fairing silent blocks

CBE Factory — purpose-built support solutions for track-focused motorcycles.
