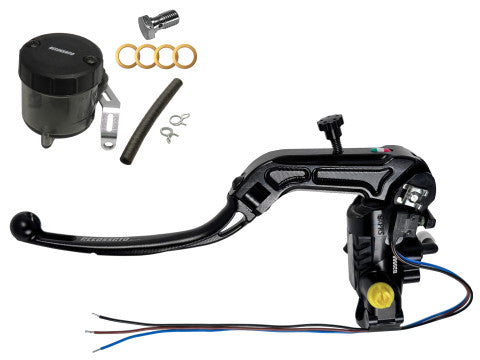

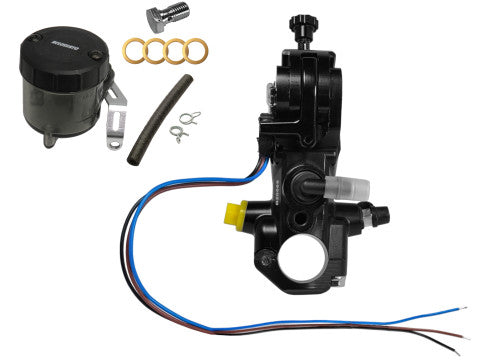

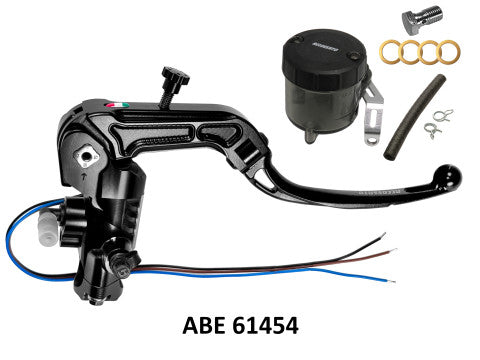

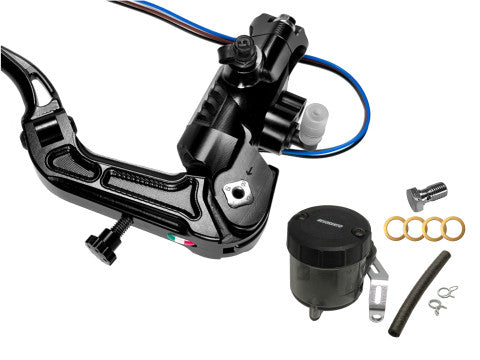

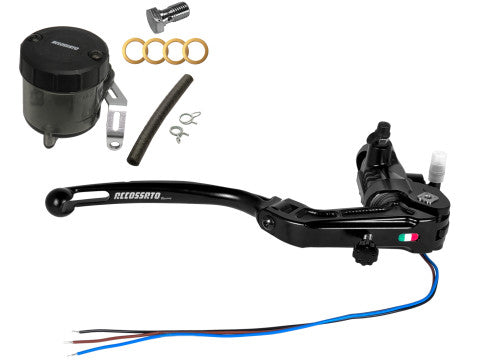

Accossato PRS 19x17-18-19 ABE 61454-Homologated Radial Brake Master Cylinder with Folding Lever and Oil Reservoir Kit Included.

Technical Specifications

• Manufacturing: CNC-machined from solid billet aluminum

• Piston Diameter: 19 mm

• Pivot Distance (Offset): PRS 17-18-19 mm

• Lever Type: Folding

• Hardware: Zinc-plated steel bolts

• Clamp: Offset bracket

• Brake Hose Fitting: M10x1

• Oil Reservoir: Smoke-tinted reservoir kit included

• Brake Light Switch: Included

The master cylinder is ABE 61454-homologated, making it fully street-legal for the German market. The updated lever ergonomics are designed to integrate seamlessly with the motorcycle's original dimensions. For a quicker and easier installation, the unit is supplied as a complete kit, including a smoke-grey oil reservoir and all necessary mounting hardware.

Understanding 19x17-18-19

When describing a master cylinder, two main values are provided: 19 x 17-18-19.

• The first number (19) represents the piston diameter in millimeters.

• The second number (17-18-19) represents the lever pivot distance (offset).

Which configuration should you choose?

• 19 mm Diameter: Ideal for double-disc braking systems.

• PRS 17-18-19 Pivot Distance: Suitable for all types of riding, as the offset is adjustable.

When selecting the best pivot distance, keep in mind that with the same amount of pressure applied to the lever, a longer pivot distance requires more physical force to achieve the same braking power but offers a more immediate feel.

All master cylinders feature a front adjuster that allows you to customize the distance between the lever and the handlebar with a simple rotation, ensuring maximum comfort for any hand size.
