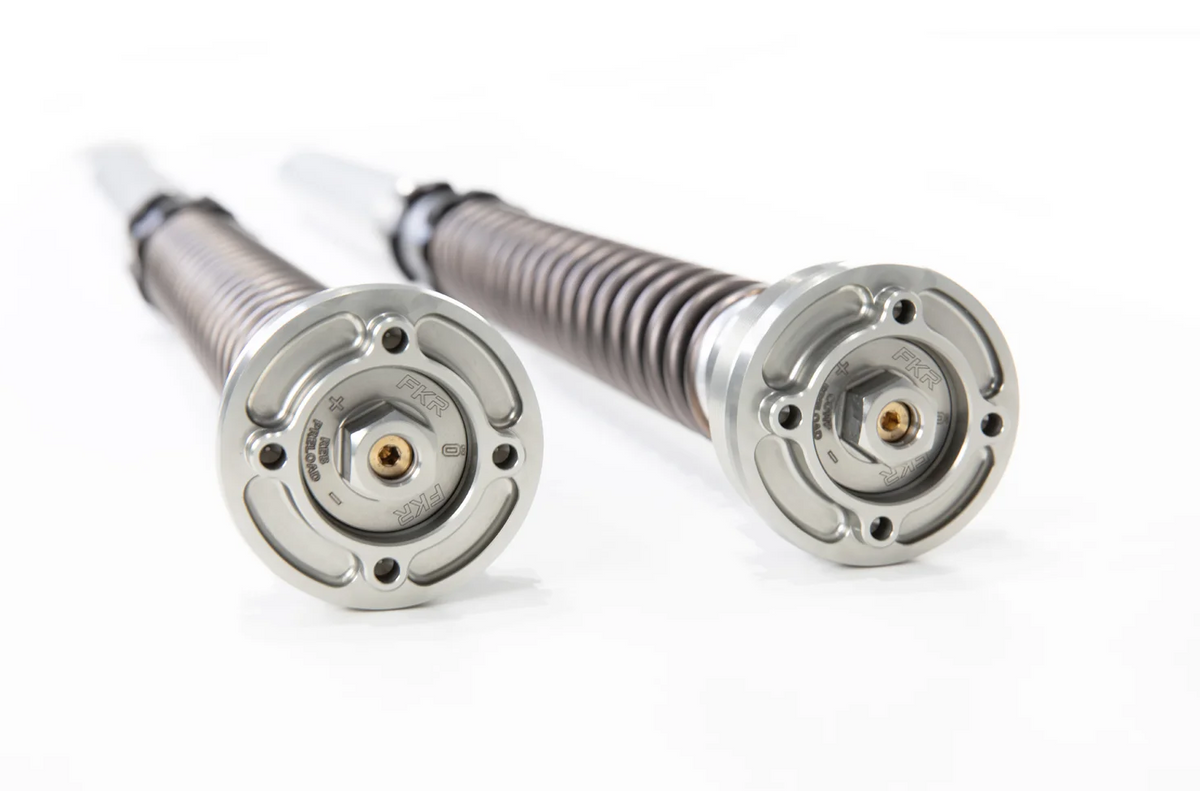

Öhlins FKR 200 Supersport Cartridge Kit

Race-Bred Suspension Performance

Take your motorcycle's front-end performance to the next level with the Öhlins FKR 200 Supersport Cartridge Kit. Developed using technology and experience gained from the highest levels of motorcycle racing, including Moto2, Moto3 and World Superbike, the FKR 200 series is designed for riders who demand exceptional handling, control and performance on track.

Based on proven Öhlins TTX technology, the FKR 200 cartridge kit features race-tuned damping characteristics designed to improve rebound control, traction and chassis stability. Whether you're competing in SuperSport or SuperStock racing or simply looking for a serious track upgrade, the FKR 200 delivers sophisticated suspension performance built for demanding riders.

Key Features

• MotoGP-inspired top cap design for a race-developed appearance and functionality

• Race-tuned damping settings with increased rebound damping for improved control and stability

• Enhanced traction and chassis stability under hard braking, corner entry and acceleration

• Preload adjusters with click feedback every half turn for precise and repeatable setup

• Magnetic guide rings help lift the preload tube when removing the spring, simplifying suspension setup

• Lightweight MotoGP-style guide sleeves reduce weight at the front end

• 130 mm stroke adjustment components included, allowing the cartridge setup to be adapted as required

• New Öhlins sticker set included

Built for the Track

The FKR 200 is engineered for riders who want to extract maximum performance from their motorcycle's front suspension. Its combination of race-developed damping, reduced weight and improved adjustability makes suspension setup easier while providing the feedback and control needed for fast, consistent riding.

Upgrade your front suspension with Öhlins FKR 200 technology and experience race-inspired handling, traction and stability.

Technical Specifications

Spring Options

The kit includes three different spring rates to allow riders to fine-tune the suspension setup to suit their riding style, motorcycle configuration and track conditions:

• 9.5 N/mm

• 10 N/mm

• 10.5 N/mm

Please check motorcycle compatibility and recommended setup specifications before installation.
