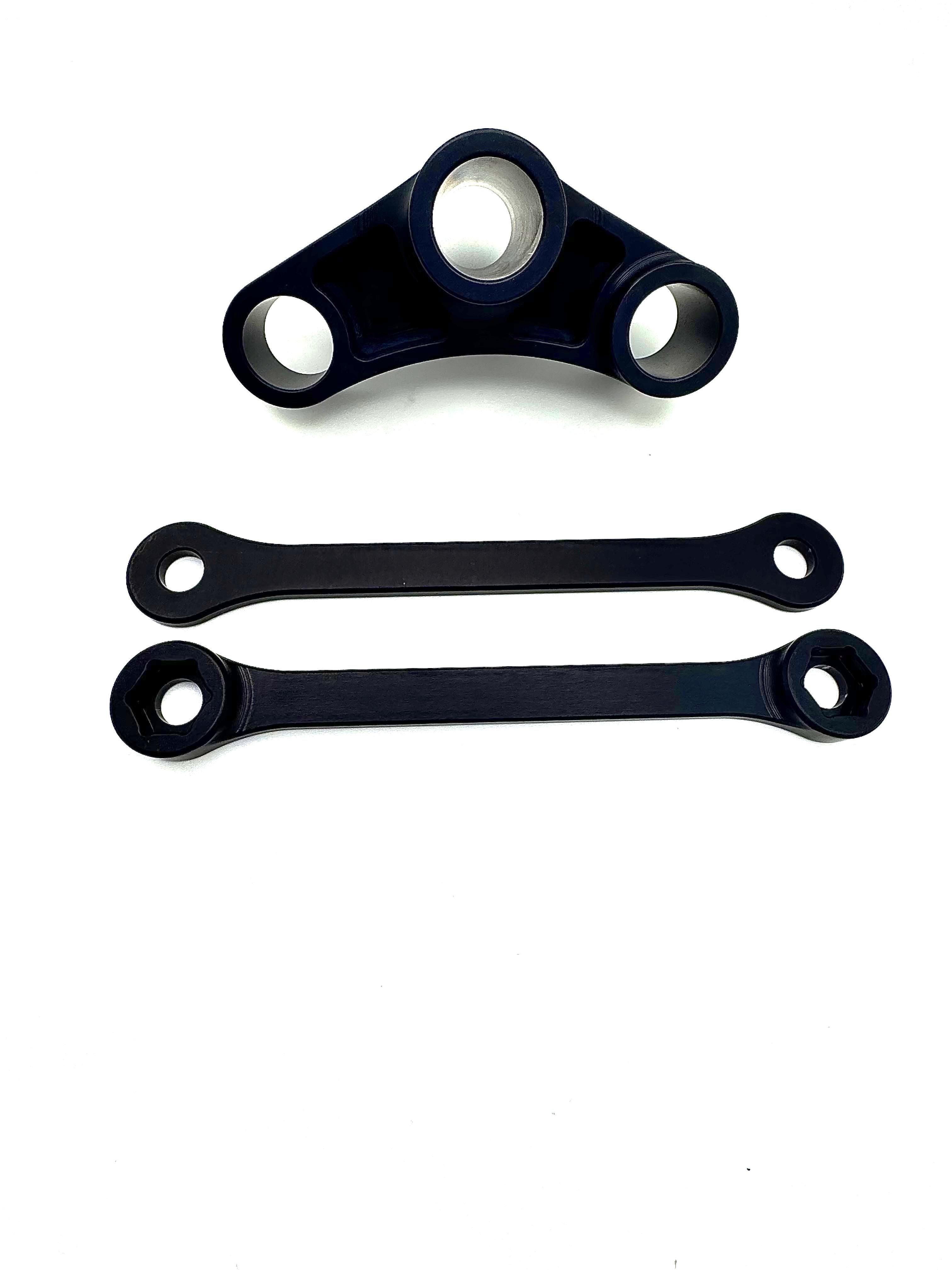

MSS Next Gen Rear Linkage T10 Kawasaki ZX-6R (636)
Incl. VAT: £432.00
Couldn't load pickup availability
Manufactured from Aluminium Billet 6061 T6 the MSS-T5 and MSS-T10 links have been designed and tested through out the 2024 BSB season and have proven to give much improved tyre life combined with vastly improved edge and side grip, this gives much more consistency with lap times from lap 1 to lap 21. This is a complete must have for Supersport NG and track day riders alike.
Offering:
· MSS-T5 = 5% progression, with more progression than standard 636 link so should be good for most tracks with some elevation change
· MSS-T10 = 10% progression which is a closer fit to the Yamaha R6 link for instance
· Both have start rates at 0.46:1, so a bit faster than the 636 so will use lighter springs.
· They have been designed with the stock 2 mm ride height shim in place
· Swingarm angles between 12.8 degrees and 14 degrees with shocks between 338 mm and 344 mm (Ohlins KA467)
· K Tech TRDS-R is 340 +8/-10 mm so wider range of swingarm angles possible
· 95-100 N/mm spring, possibly 90 N/mm with the MSS-T10
· There is a good opportunity to be at 100-102mm of trail with 120mm or 130mm front fork.
Image may not be exact/Reference only.
