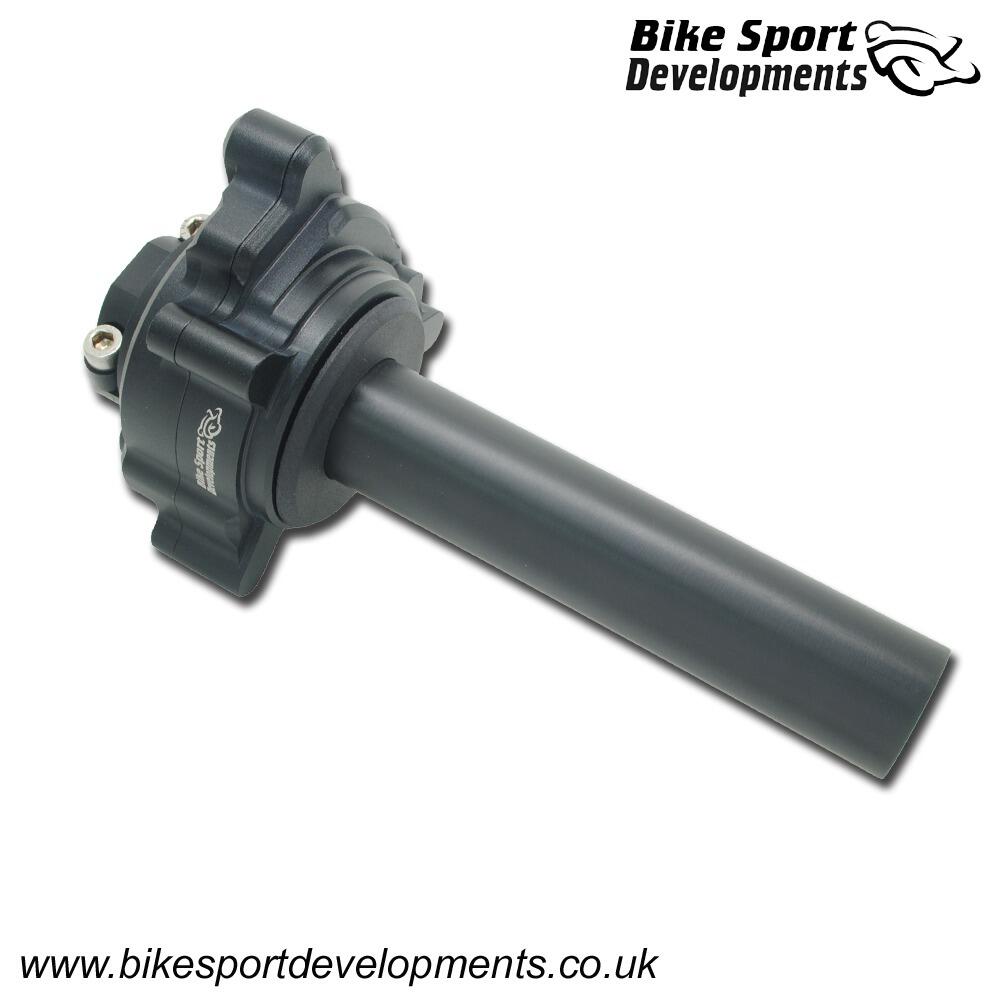

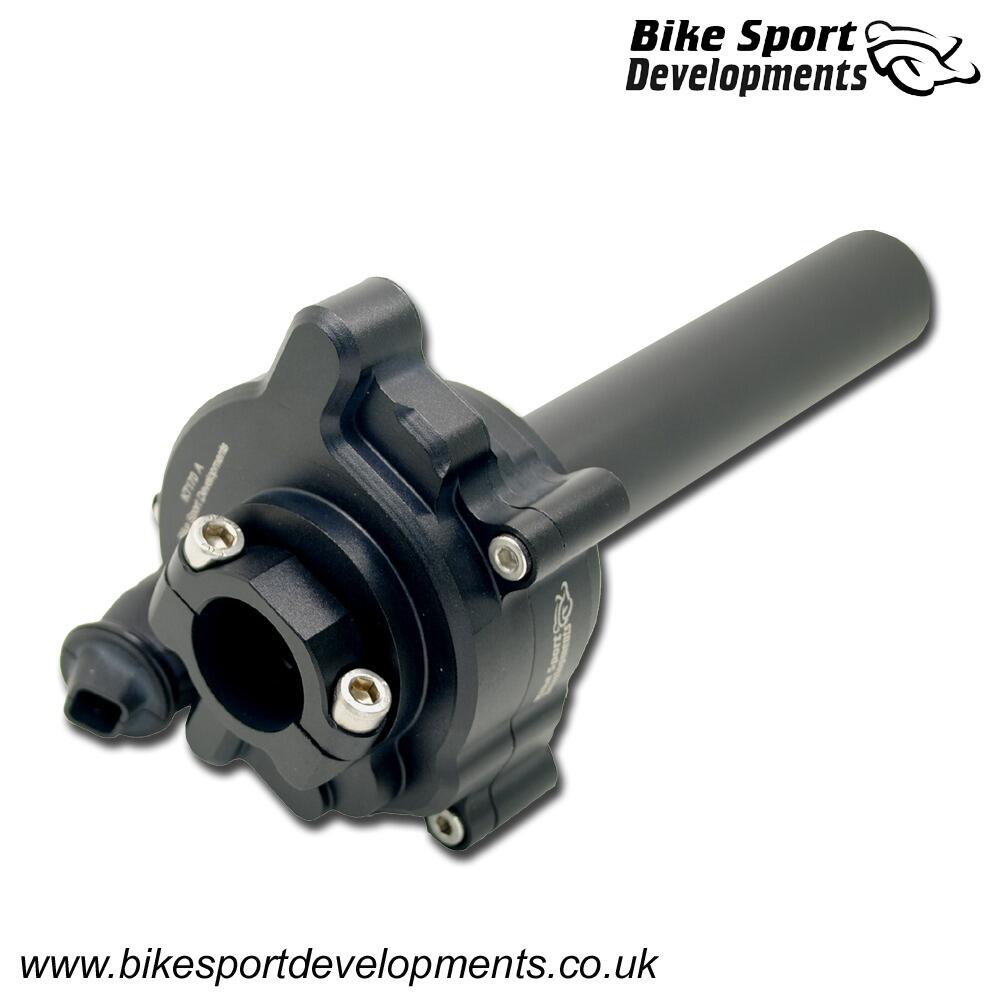

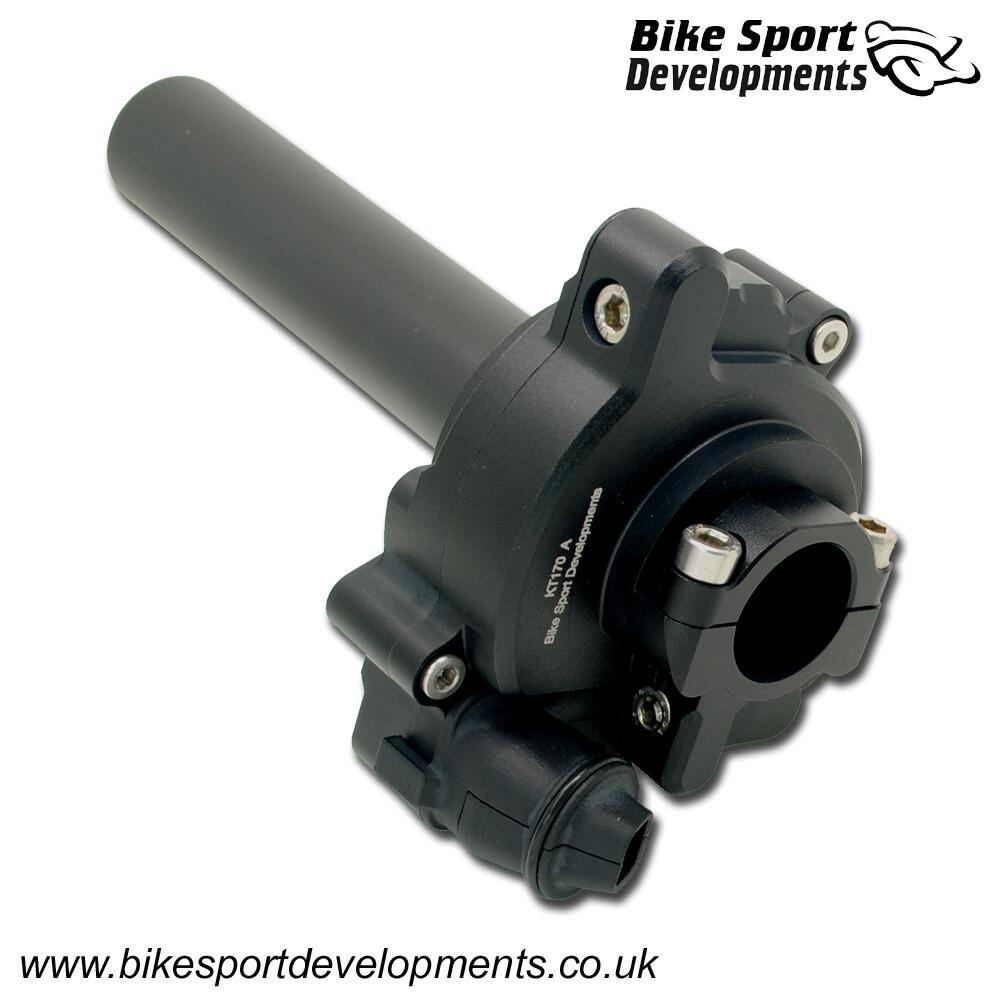

KT170 - Yamaha R9 and MT-09 2024 onward - Billet aluminium throttle housing + Throttle tube

Make : Yamaha

Model : R9 and MT-09

Year : 2025 onward for R9 and 2024 onward for MT-09

Part Number : KT170

Position : Right side

Road or Track : Both

Download the throttle housing installation Manual

--

These bikes feature a 1 piece switch and twist grip sensor assembly which is over-large and easy to crash damage.

This new assembly surrounds the standard sensor in a more compact and crash resistant billet aluminium housing, complete with new bespoke Acetal throttle tube. We suggest that a replacement throttle tube is bought as a spare part along with this order at 30% discount, crashes are inevitable and this is the first part to get damaged. Use the pull down menu to add one to your order.

Plug and Play installation in minutes.

The twist grip may also be rotated on the bar to achieve optimum component clearance. Housing and throttle tubes are available separately as a replacement parts

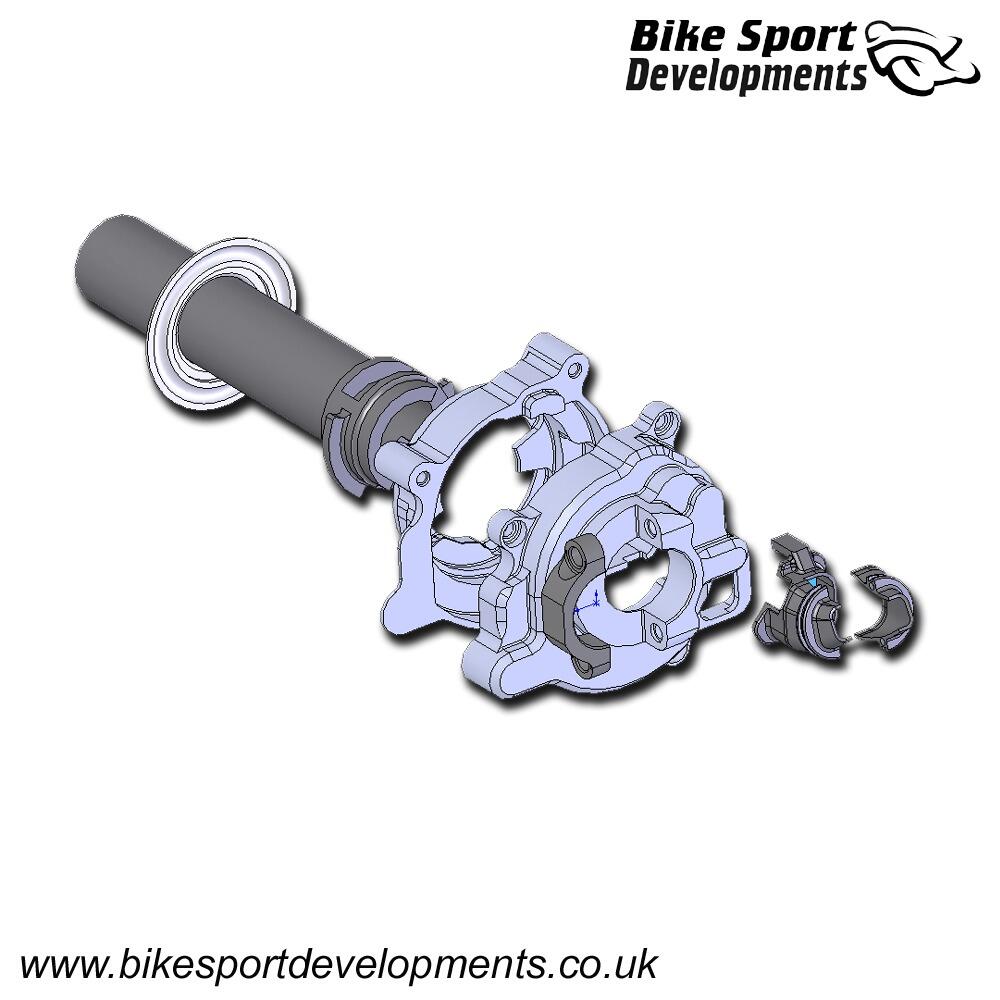

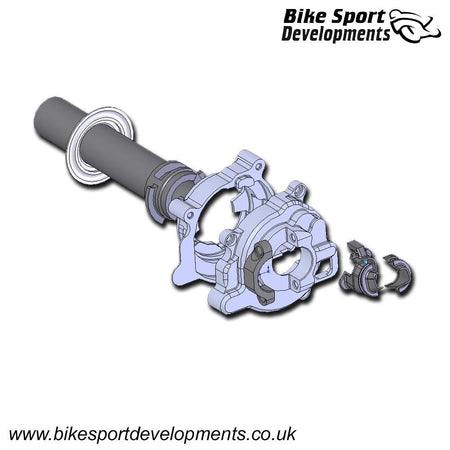

Kit parts list (refer to manual for more details)

• Inner and outer billet aluminium housing
• Clamp to secure to the handlebar
• Throttle tube (use the pull down menu to add a 'spare' to your basket at discount price)
• Cable entry components
• Fasteners and O ring.

Suggested matching right switch assembly for brake mounting - BD-SW-3BC-93

--

Construction / Notes:

• Billet aluminium body with Acetal throttle tube.
• Greater crash protection and electrical integrity
• Designed and manufactured in the UK at our workshops close to Silverstone
