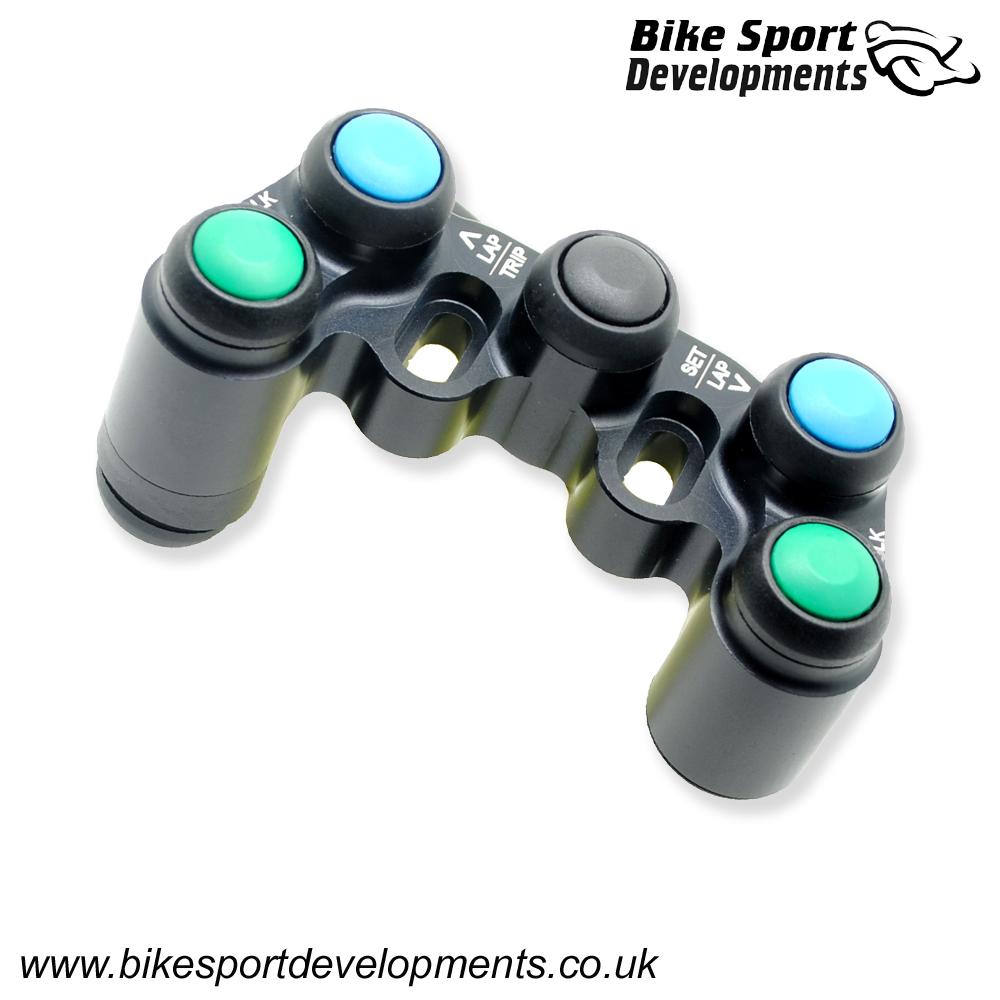

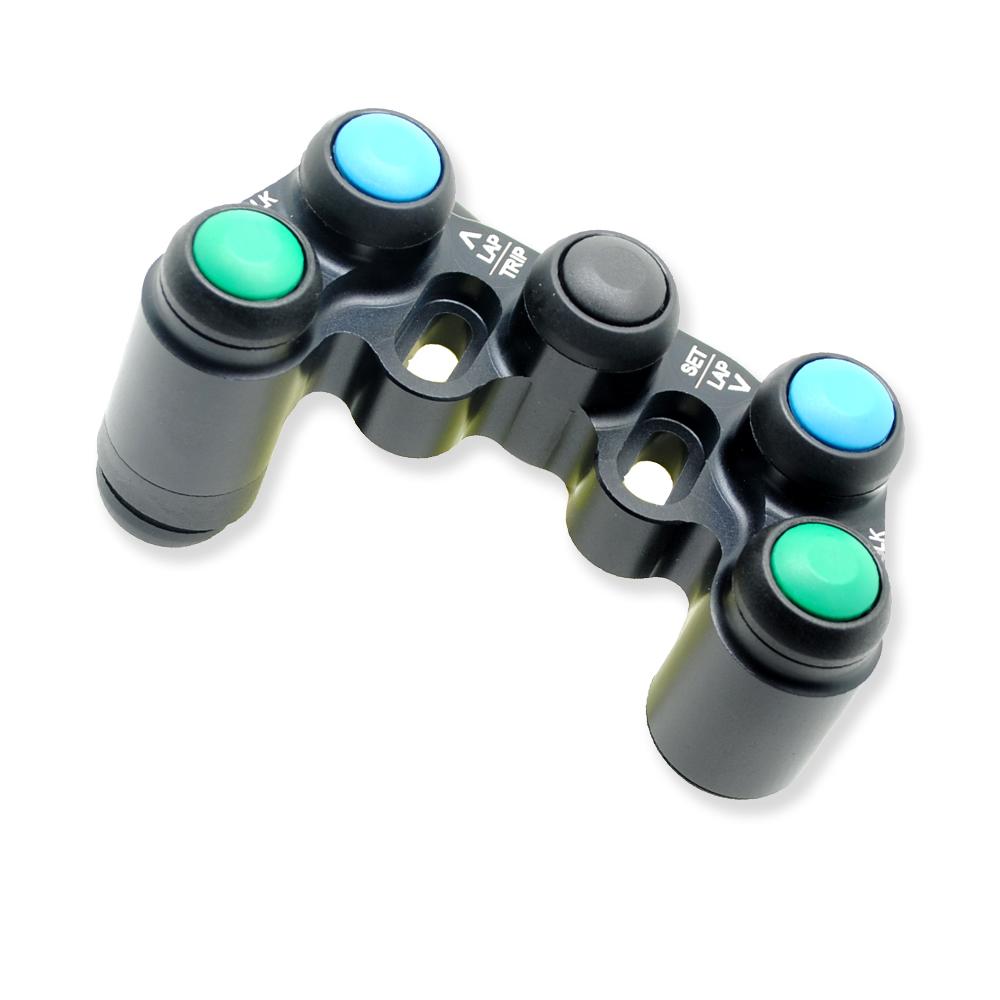

BD-SW-6BC-34 - BMW S 1000RR K46 - 6 function race switch - handlebar/clutch mount - Multi-function

Make : BMW

Model : S 1000 RR - K46

Year : 2013 to 2018

Part Number : BD-SW-6BC-34

Number of switch functions : 6

Position : left side

Road or Track : Track only

Mounting type : Mounts directly onto the handlebar using our generic 22mm clamp

Download the product : Datasheet

--

This switch is a direct 'plug-and-play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

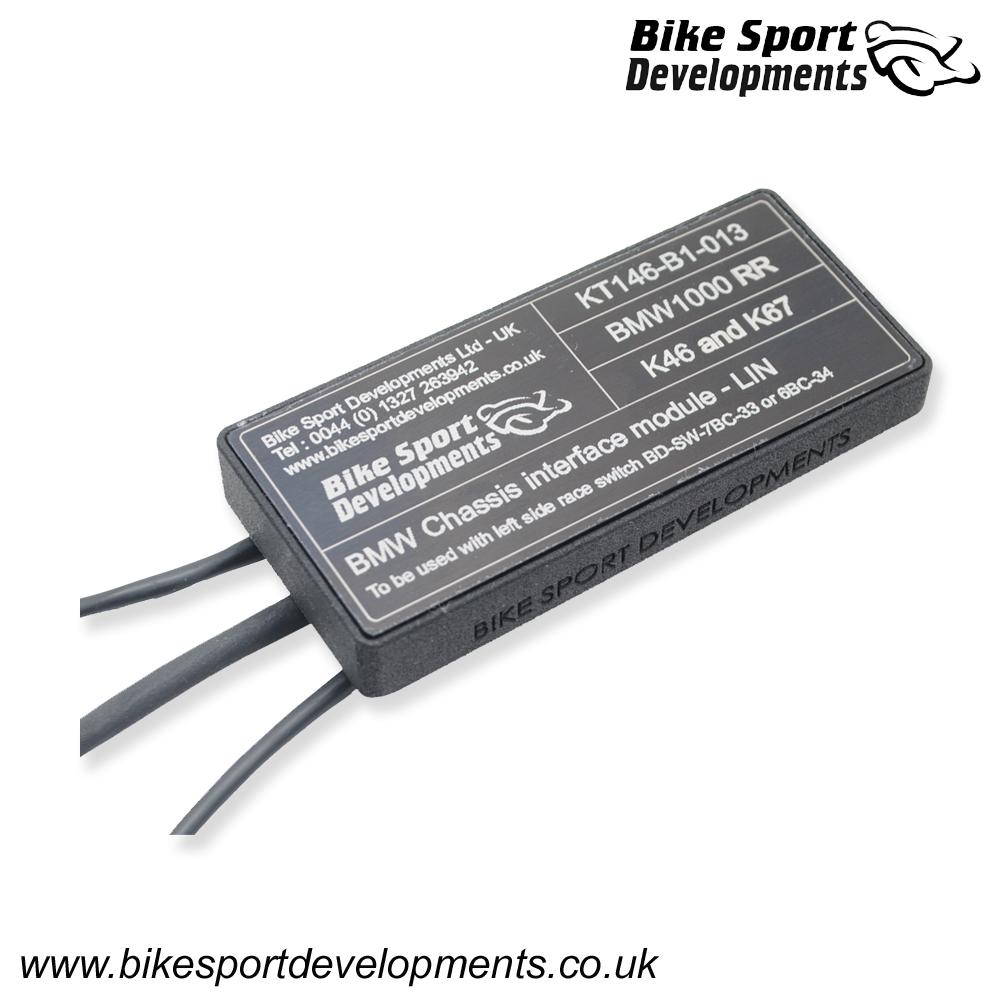

Wiring - No modification of the bike wiring is necessary, this kit plugs directly into the connectors of the standard loom via our LIN BUS interface which is programmed to be 100% compatible with the existing

--

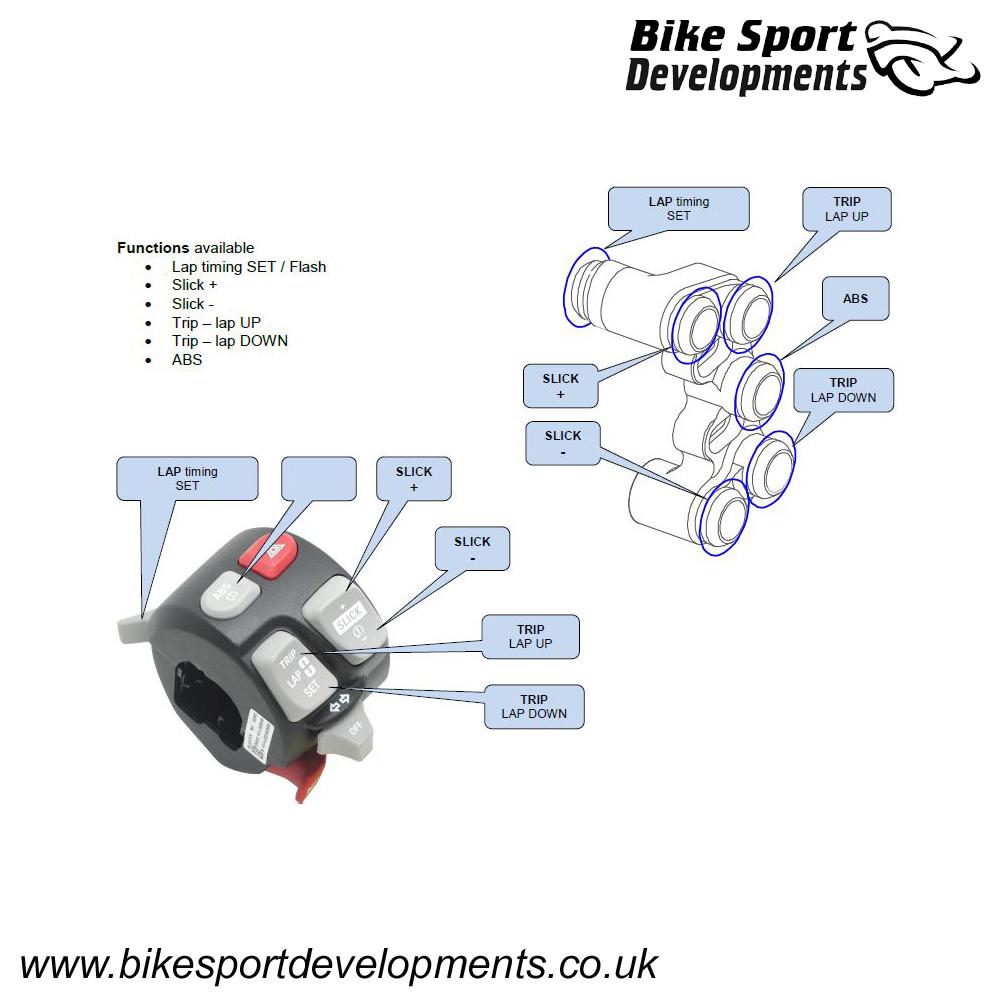

Functions in RIDER mode:

• Lap timing - Set / Flash
• Slick +
• Slick -
• Trip - lap Up
• Trip - Lap Down
• ABS

--

Lap timing

GPS – The standard switch provides a manual lap timer ‘start’ via the flash function, this is also recreated on our switch but we also provide an option to plug in a separate GPS lap timer (use pull down menu for this option) which has large memory of built in track finish lines,

See product choices below

--

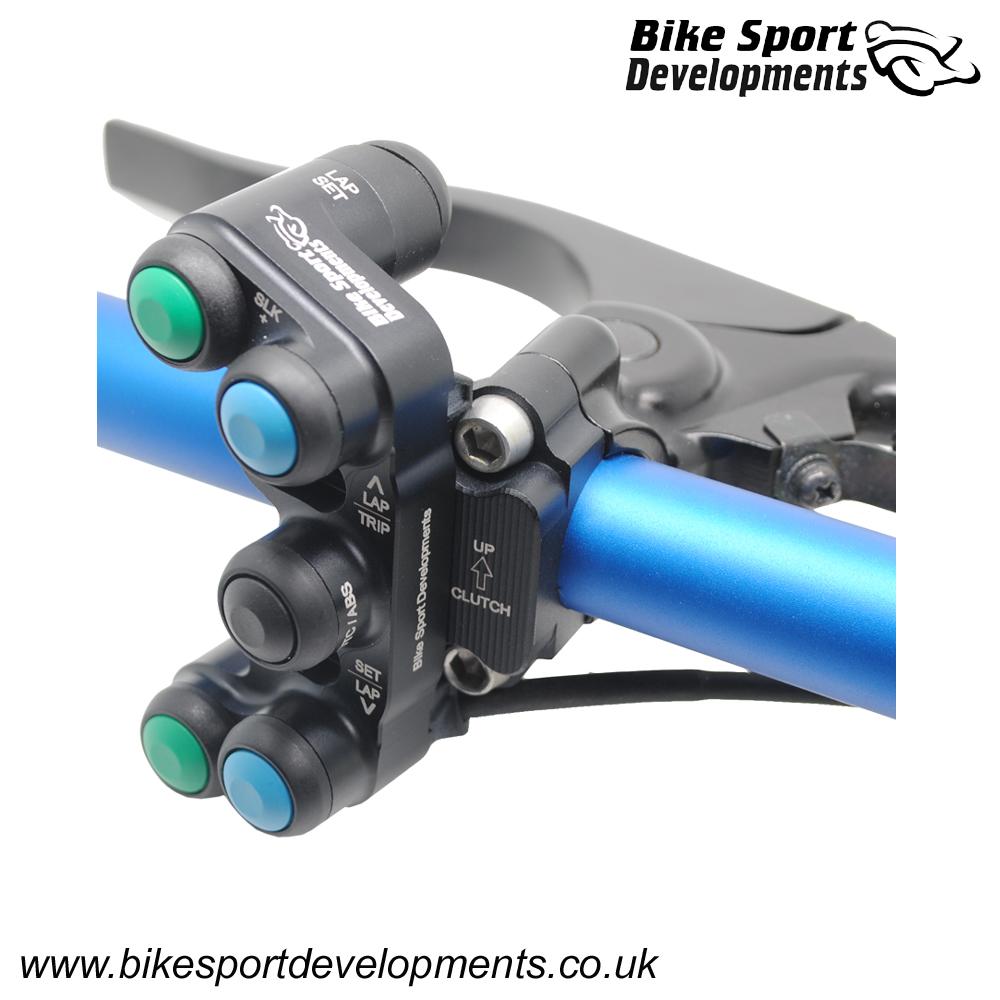

These 'Type C' switches can mount onto the clutch post or master cylinder, but for BMW applications we provide the BR-G clamp to achieve maximum position adjustment.

One clamp is supplied free with each switch, with the default clamp being the BR-G, but you are free to choose an alternative clamp at the time of ordering at no extra cost. For clutch mounting on the BMW choose clamp CL-A

--

We have clutch clamps for:

• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components
• BR-G   22mm generic bar clamp

Unless otherwise specified we will supply the BR-G clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brake or clutch parts, or thumb brakes.

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug-and-play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our speciality, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
