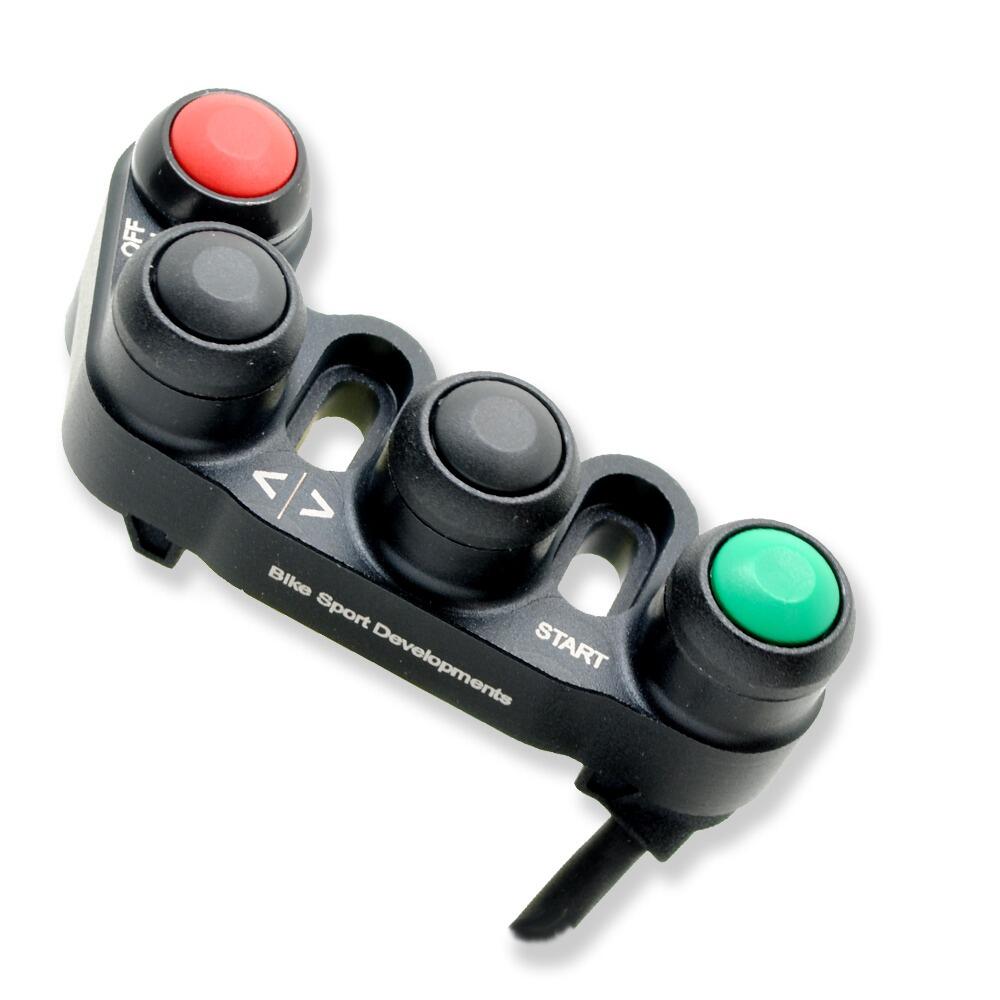

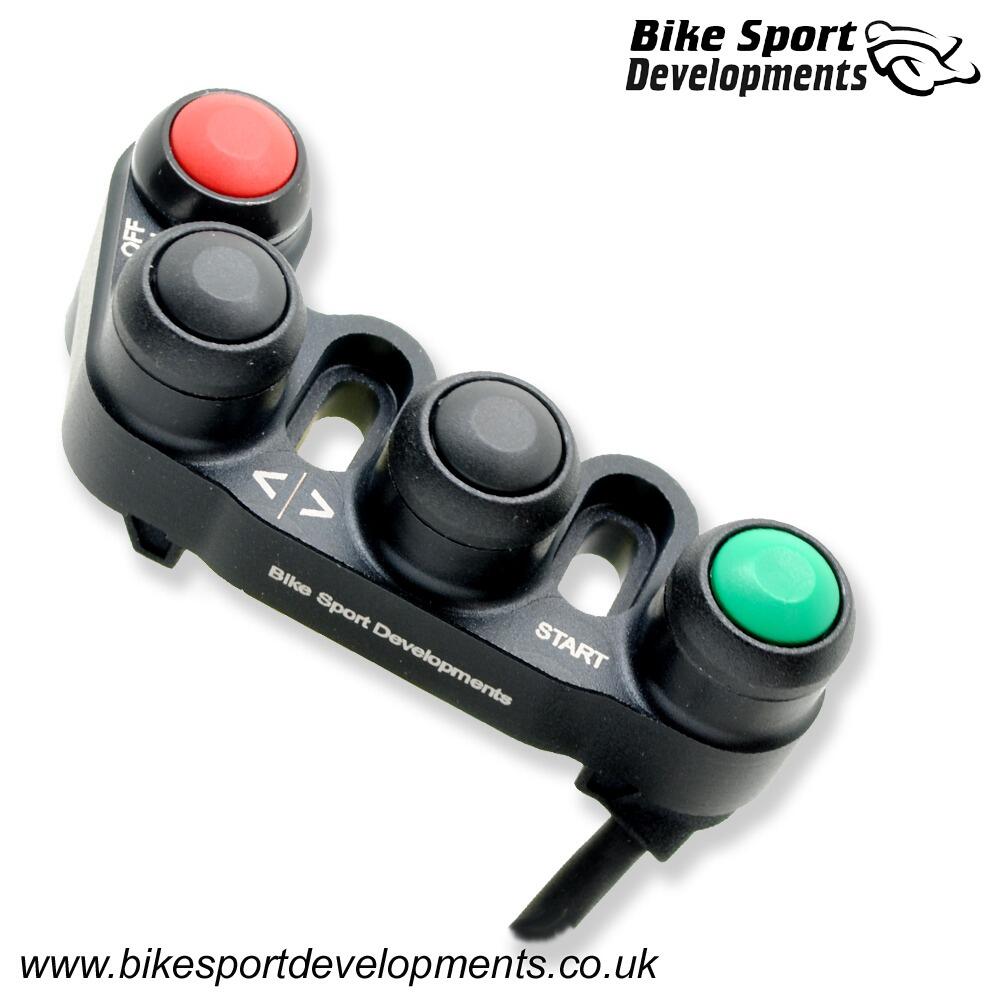

BD-SW-4BC-50 - Yamaha R1 2015 onward fitted with an i2m dashboard - 4 function - brake mount - Stop/Run Start dash up/down

Make : Yamaha

Model : R1

Year : 2015 onward with i2m dashboard

Part Number : BD-SW-4BC-50

Number of switch functions : 4

Position : Right side

Road or Track : Track only

Mounting type : Mounts directly onto the brake master cylinder

Download the product : Datasheet

--

This switch is a direct 'plug-and-play' replacement for the standard switch assembly on bikes fitted with the i2m dashboard

The standard Mode switch is removed and replaced by two buttons for dash up/down and pre-wired to suit the i2m dash

May also be used with the YEC/GYRT kit system (choose switch option A)

--

Functions :

• Stop/Run
• Start
• Dash up/down

--

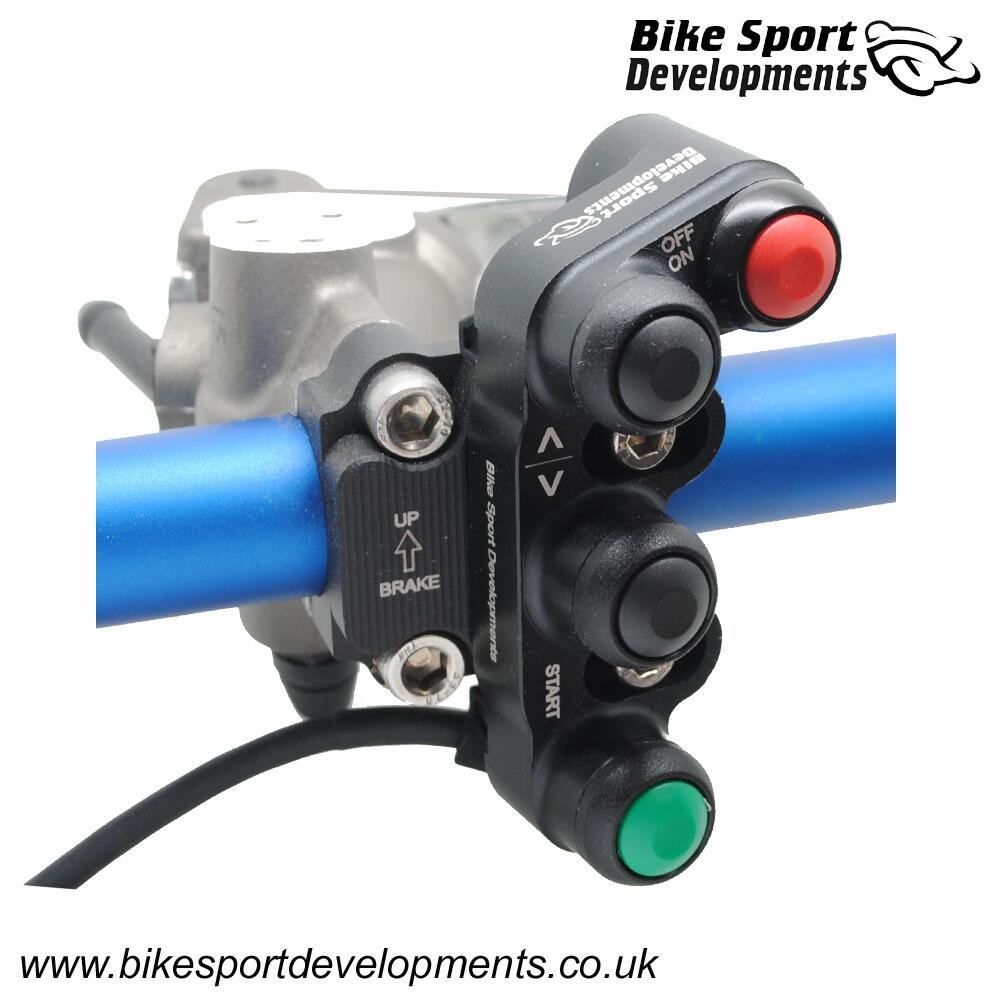

These 'Type C' switches mount directly onto the  brake master cylinder using the two original clamp screws and a new dedicated clamp.

We have brake clamps for:

• BR-A    32mm in-line bolts with a right offset switch location - Read this document
• BR-N    32mm in-line bolts with a left offset switch location for short brake levers - Read this document
• BR-B    30mm offset bolt spacing - Brembo XR , GP
• BR-F    30mm in-line as found on Accosato / Hel components
• BR-J     32mm offset bolts spacing as found on Beringer components
• BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for this application.

Specify clamp type at the time of ordering. One clamp is supplied free of charge per switch.

Alternative clamps can be purchased separately, no need to replace the switch assembly.

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug-and-play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our speciality, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
