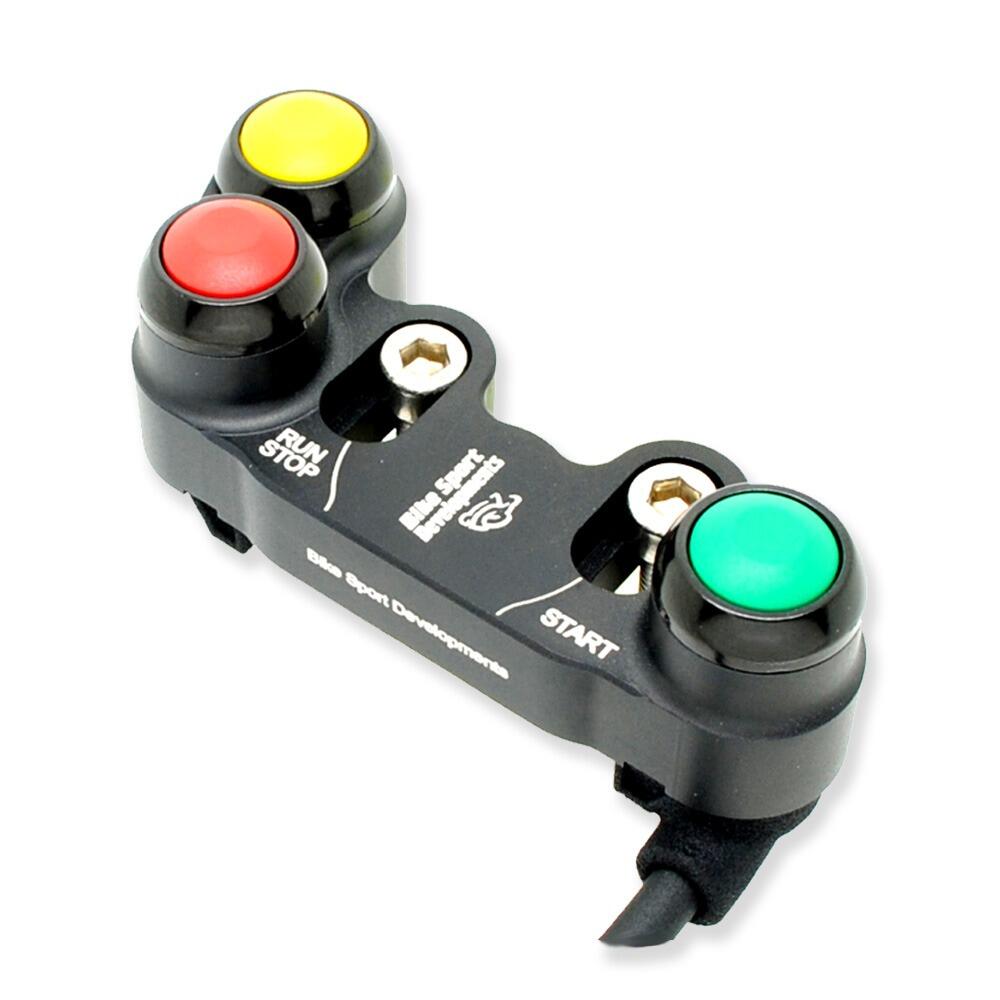

BD-SW-3BC-83 - Suzuki GSX 8R 2024 onward - 3 function - brake mount - Stop/Run Start Rain

Make : Suzuki

Model : GSX 8R

Year : 2024 onward

Part Number : BD-SW-3BC-83

Number of switch functions : 3

Position : Right side

Road or Track : Track only

Mounting type : Mounts directly onto the brake master cylinder

Download the product : DATASHEET

--

This switch is a direct 'plug-and-play' replacement for the standard switch assembly.

The rain switch is wired for use with the brake light switch circuit.

NOTE : The standard right switch on the 8R comprises both the switch assembly and throttle grip sensors. When fitting this product you will also need to source an aftermarket ‘stand alone’ throttle grip.

--

Functions :

• Rain
• Stop/Run
• Start

--

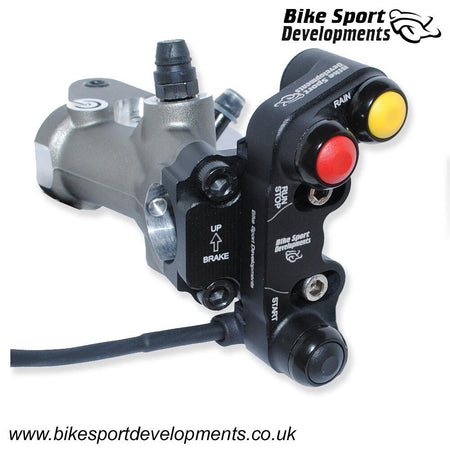

These 'Type C' switches mount directly onto the  brake master cylinder using the two original clamp screws and a new dedicated clamp.

We have brake clamps for:

• BR-A    32mm in-line bolts with a right offset switch location - Read this document
• BR-N    32mm in-line bolts with a left offset switch location for short brake levers - Read this document
• BR-B    30mm offset bolt spacing - Brembo XR , GP
• BR-F    30mm in-line as found on Accosato / Hel components
• BR-J     32mm offset bolts spacing as found on Beringer components
• BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for this application.

Specify clamp type at the time of ordering. One clamp is supplied free of charge per switch.

Alternative clamps can be purchased separately, no need to replace the switch assembly.

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug-and-play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our speciality, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
