Bike Sport Developments

BD-SW-3BC-09 - Yamaha R1 2015 onward - 3 function - bar clamp mount - Up Select Down

No reviews
£215.00

Incl. VAT: £258.00

Left side clamp
Product details
  • Vendor Bike Sport Developments
  • SKU BD-SW-3BC-09-1

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews

Make : Yamaha

Model : R1

Model : 2015 onward

Part Number : BD-SW-3BC-09

Number of switch functions : 3

Position : Left side

Road or Track : Track only

Mounting type : Mounts directly onto the handlebar using our generic 22mm clamp

Download the product : DATASHEET

--

This switch is a direct 'plug-and-play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

May be used with the standard and YEC/GYTR ECU and wiring, but primarily used for standard wiring systems.

--

Functions :

  • Up
  • Select
  • Down


--

These 'Type C' switches normally mount onto the clutch post or master cylinder, but Yamaha only have one clutch post bolt as standard. For this reason the default clamp will be the BR-G generic clamp

One clamp is supplied free with each switch, with the default clamp to suit a standard bike, but you are free to choose an alternative clamp at the time of ordering at no extra cost should you have an aftermarket clutch post.

We have clutch clamps for:

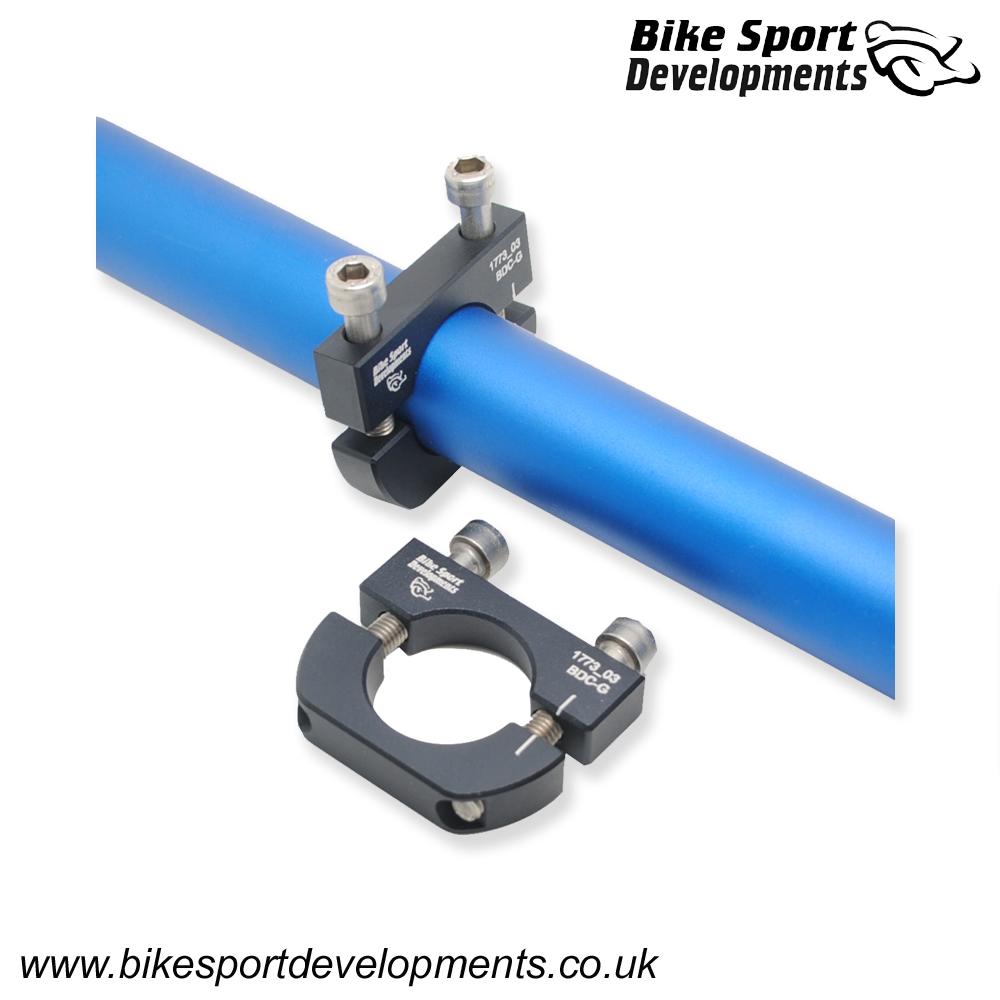

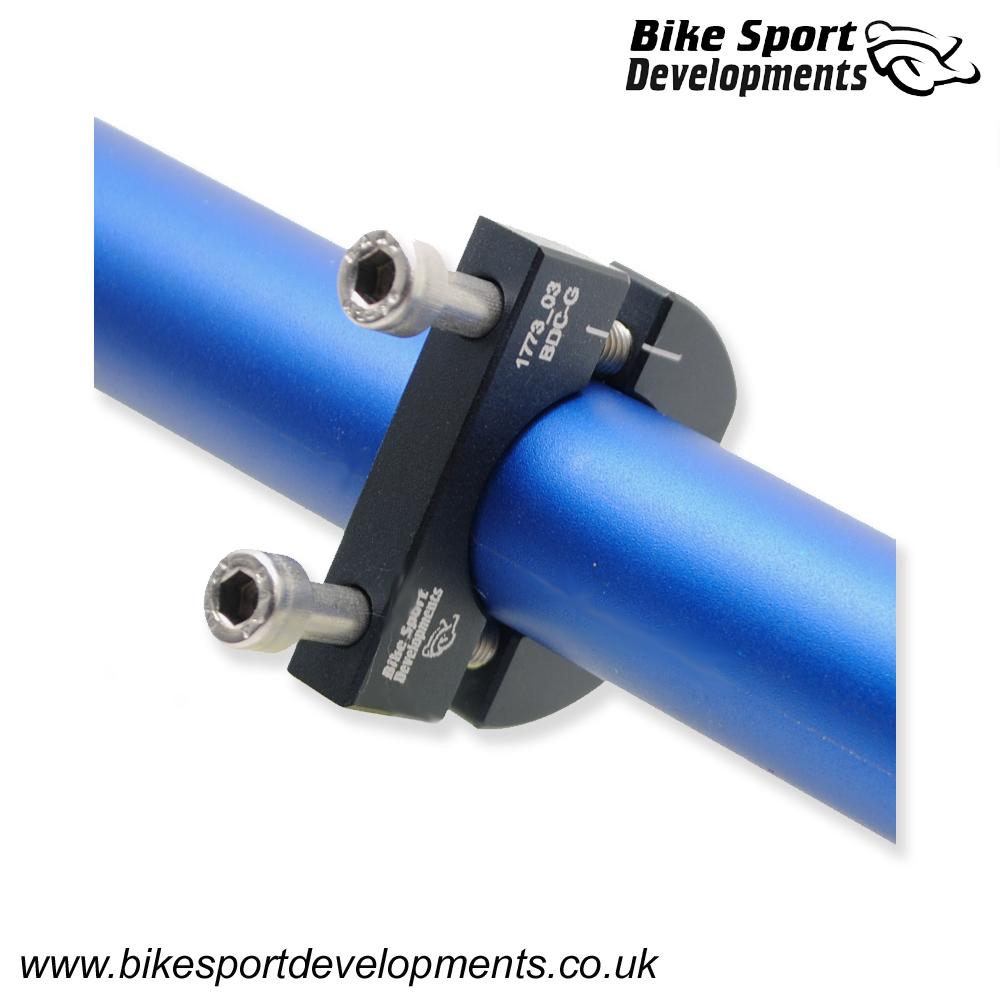

  • BR-G   22mm generic bar clamp
  • CL-A    32mm in-line bolt spacing
  • CL-B    30mm offset bolt spacing - Brembo XR , GP
  • CL-F    30mm in-line as found on Accosato and Hel components
  • CL-K    36mm in-line spacing as found on Kawasaki
  • CL-J    32mm offset bolts spacing as found on Beringer components

Unless otherwise specified we will supply the BR-G clamp for this application.

Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

--

Construction / Notes:

  • Billet aluminium body
  • IP 67 waterproof switches with gold plated contacts
  • Raychem type 55 wire and DR25 sleeving

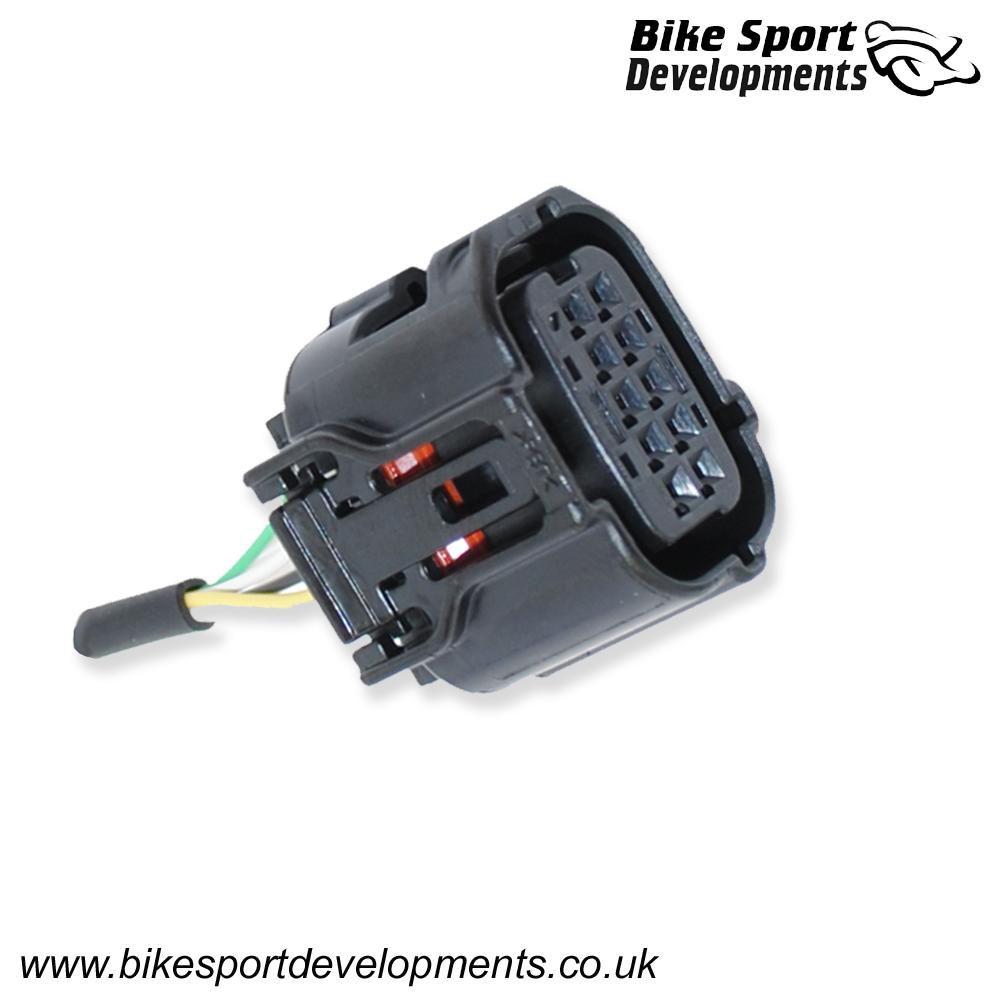

  • Plug-and-play wiring
  • Greater crash protection and electrical integrity
  • May be repaired after crash damage
  • Custom designs are our specialty, so feel free to ask and typically at no extra cost.
  • Designed and manufactured in the UK at our workshops close to Silverstone
