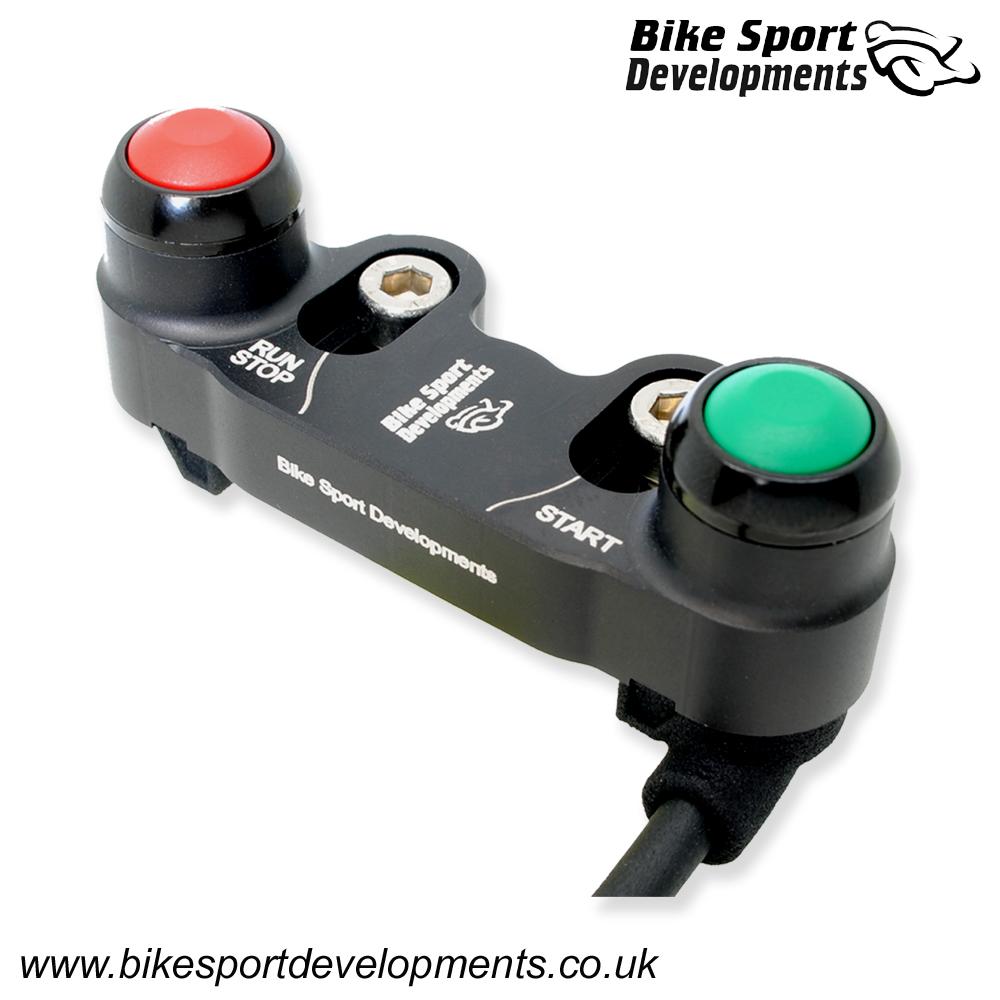

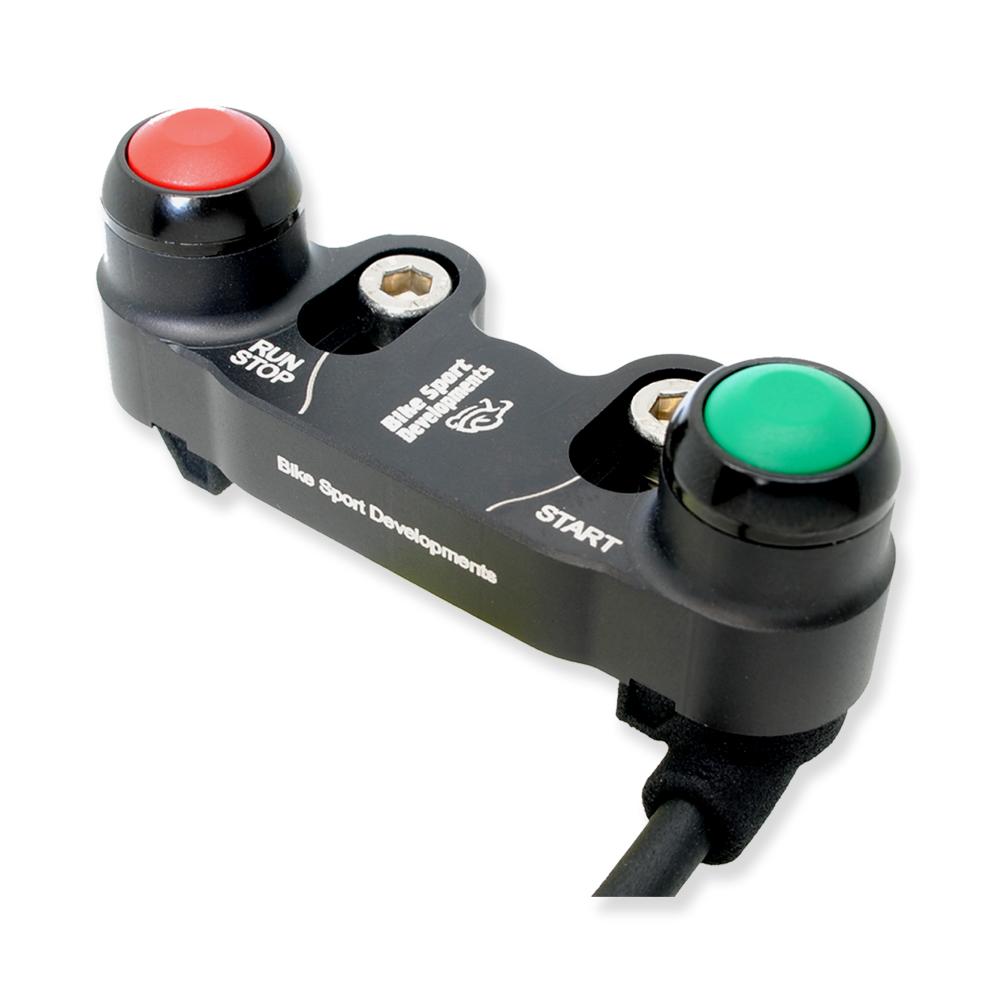

BD-SW-2BC-41 - SSP MecTronik SOLO compatible - 2 function right switch for mounting onto the brake pump

Make : Universal

Model : Universal

Year : n/a

Part Number : BD-SW-2BC-41

Number of switch functions : 2

Position : Right side

Road or Track : Track only

Mounting type : Mounts directly onto the brake master cylinder

Download the product : DATASHEET

--

This switch is created specifically for use on SSP next Generation and MecTronic equipped bikes providing a direct 'plug-and-play' alternative to the SOLO product.

Custom team LOGO laser engraving is available. Use the 'pull down' options on this page and then send us your logo as a 'black on white' JPG file by Email.

--

Functions :

• Stop/Run
• Start

--

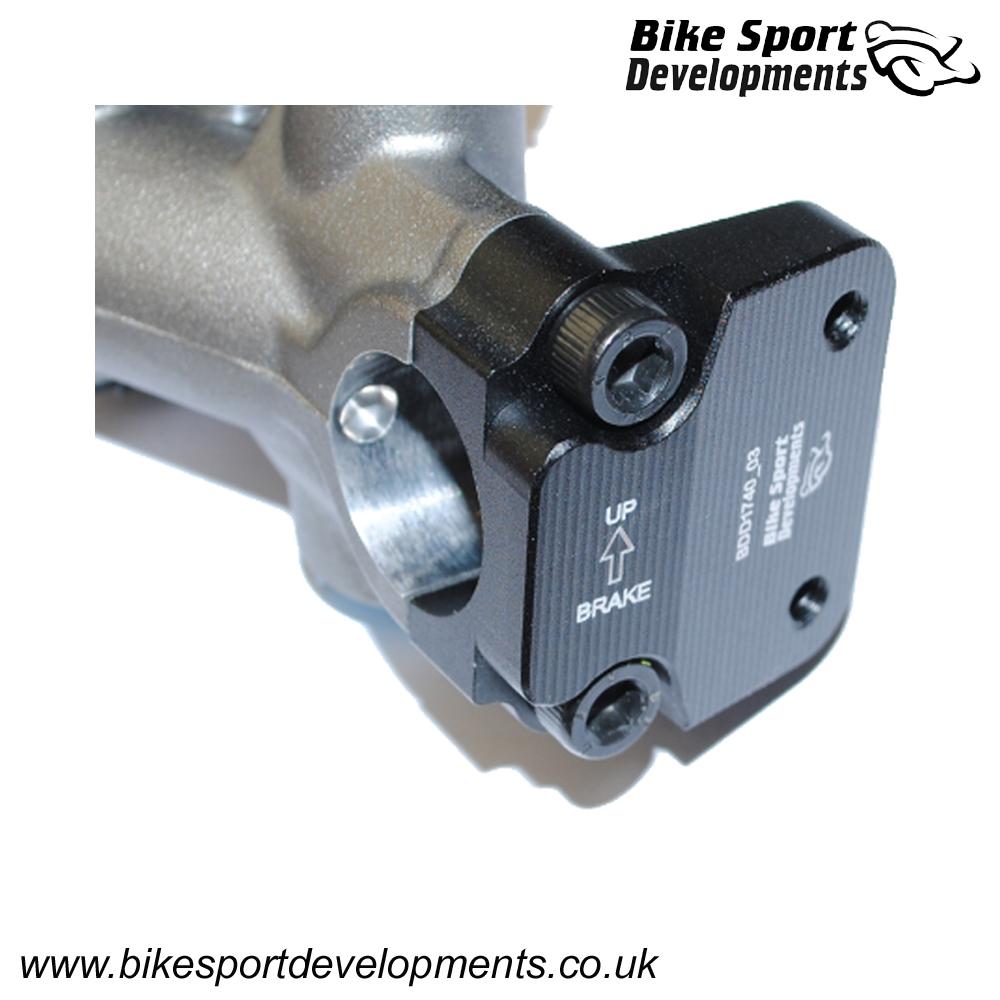

These 'Type C' switches mount directly onto the brake master cylinder using the two original clamp screws and a new dedicated clamp.

One clamp is supplied free with each switch, with the default clamp being BR-A, but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have brake clamps for:

• BR-A    32mm in-line bolt spacing
• BR-B    30mm offset bolt spacing - Brembo XR , GP
• BR-N    32mm in-line with a left offset for short brake levers Nissin / Brembo RC, RCS, Costa Corta
• BR-F    30mm in-line as found on Accosato / Hel components
• BR-J     32mm offset bolts spacing as found on Beringer components

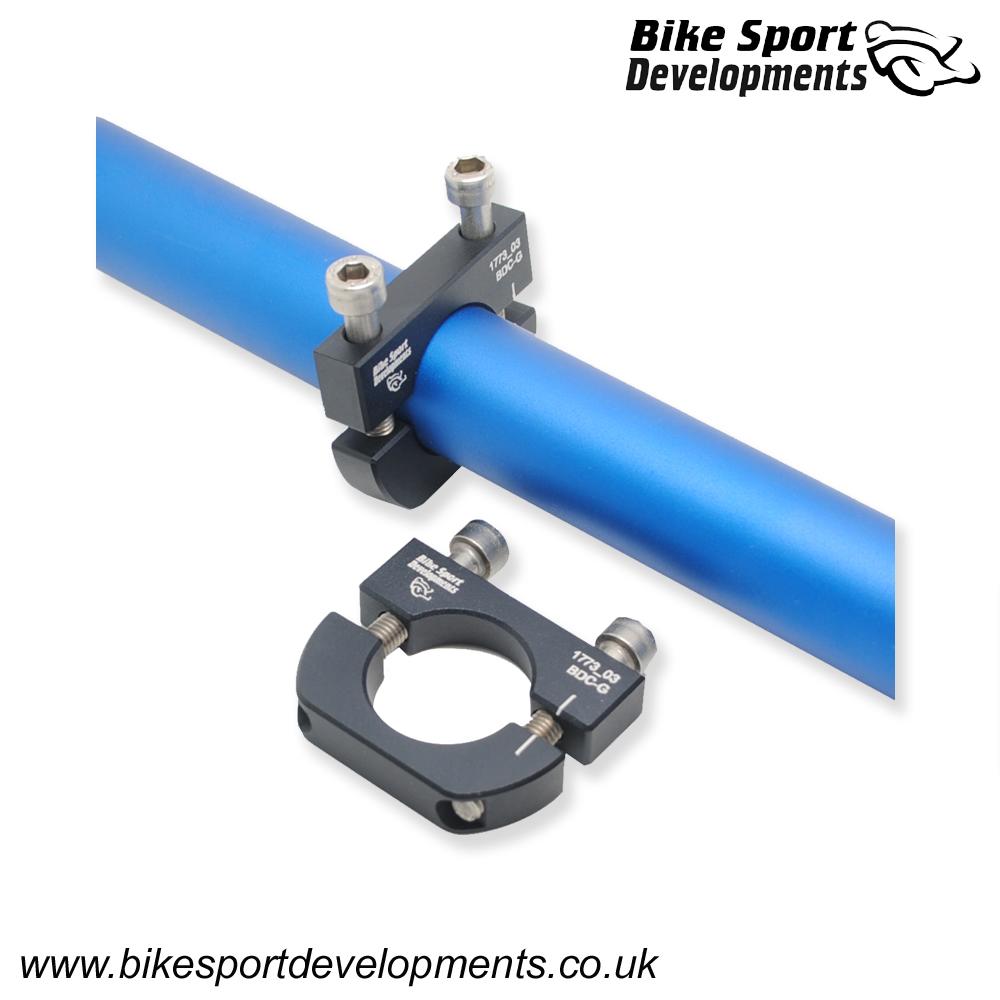

• BR-G    Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump)

Unless otherwise specified we will supply the BR-A clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket brake components, or narrow bars.

--

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug-and-play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our specialty, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
